Lightweight – affords extra payload
Tare weight reduction of up to 110 Kg
Load capacity up to 25 tonnes per set
4 sizes for universal fitting
Easy to install and handle
No maintenance required
Time-saving pin-based anchoring system
Description

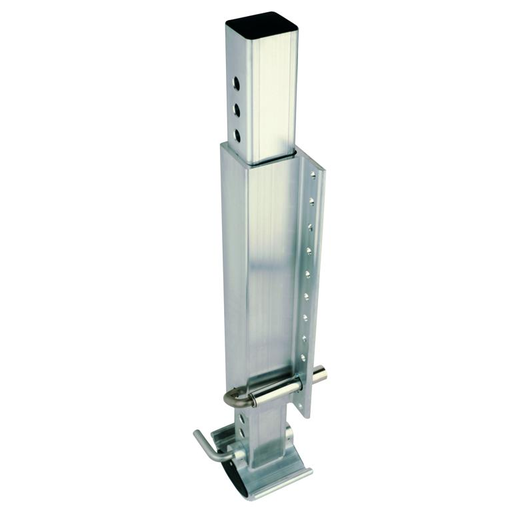

One of the main features of our landing legs is their reduced weight, instantly increasing the vehicle’s payload capacity by around 100 Kg per load. In spite of the lightweight construction, these landing legs have a loading capacity of up to 25 tonnes and provide the same strength tolerance as a standard pair of heavier iron legs.
As an example, if fitted to a vehicle making 5 deliveries per day for 5 days per week, the lightweight landing legs will give you an extra 2.5 tonnes per week.
The lightweight landing legs are offered in 4 sizes to universally fit to any commercial trailer chassis, and are easy to install and handle. They are designed for vehicles with pneumatic suspension.

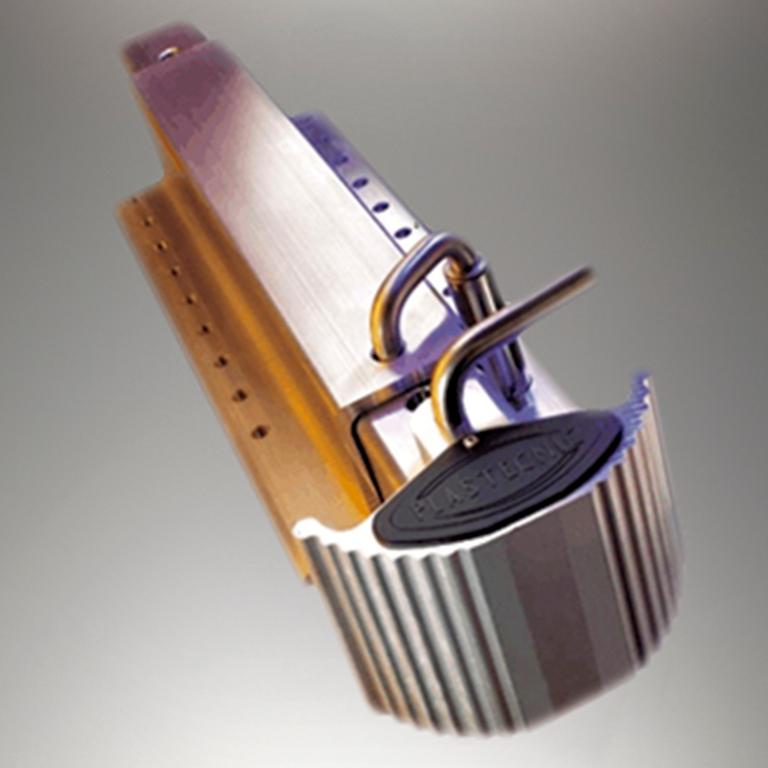

The anchoring system is based on a pin actuated by the compression of a spring, avoiding the operator having to tediously extend the leg by using a crank.
Profitable, user friendly and requiring no maintenance, the lightweight landing legs are an attractive and economical solution for all hauliers.
Dimensions
| Model | Closed Landing Leg | Open Landing Leg | Distance between Holes | Max Load per Set | Weight per Set |
| 650×700 | 800 mm | 1,245 mm | 50 mm | 25,000 Kg | 42 Kg |
| 650×880 | 980 mm | 1,447.5 mm | 50 mm | 25,000 Kg | 44 Kg |
| 650×980 | 1,080 mm | 1,547.5 mm | 50 mm | 25,000 Kg | 46 Kg |
| 650×1080 | 1,180 mm | 1,647.5 mm | 50 mm | 25,000 Kg | 48 Kg |
Part Codes
BOW970 – Lightweight Landing Legs
Lightweight landing legs (loading capacity 25 tonnes)
