Vehicle Weighing Pads

Robust, Portable Design: The weigh pads are designed to withstand frequent vehicle weight checks, ensuring durability and optimal weighing performance over many years. Lightweight construction with easy-to-transport wheels makes them ideal for both mobile and semi-permanent setups.
Versatile Weighing Options: Multiple models are available to meet various needs, from light vans to multi-axle vehicles with high-capacity weights. Both wired and wireless models are offered to suit different operational requirements.
Non-Slip Platform & High Capacity: Equipped with a non-slip base, the weigh pads are safe for high-torque vehicles. Capacities range from 1500kg to 10000kg per pad, depending on the model, catering to a wide variety of vehicles.
Built-in Weight Indicator and Printer: Each pad includes an indicator with a built-in printer for convenient printing of axle and gross weight data. The DA 3590ETKR touchscreen terminal further enhances functionality with USB storage and dynamic weighing capabilities.
Optional Accessories for Enhanced Usability: Accessories like on/off ramps and levelling kits are available for improved ease of use and installation flexibility, allowing the weigh pads to be securely installed even in semi-permanent settings.

Contact us for a quote

Description

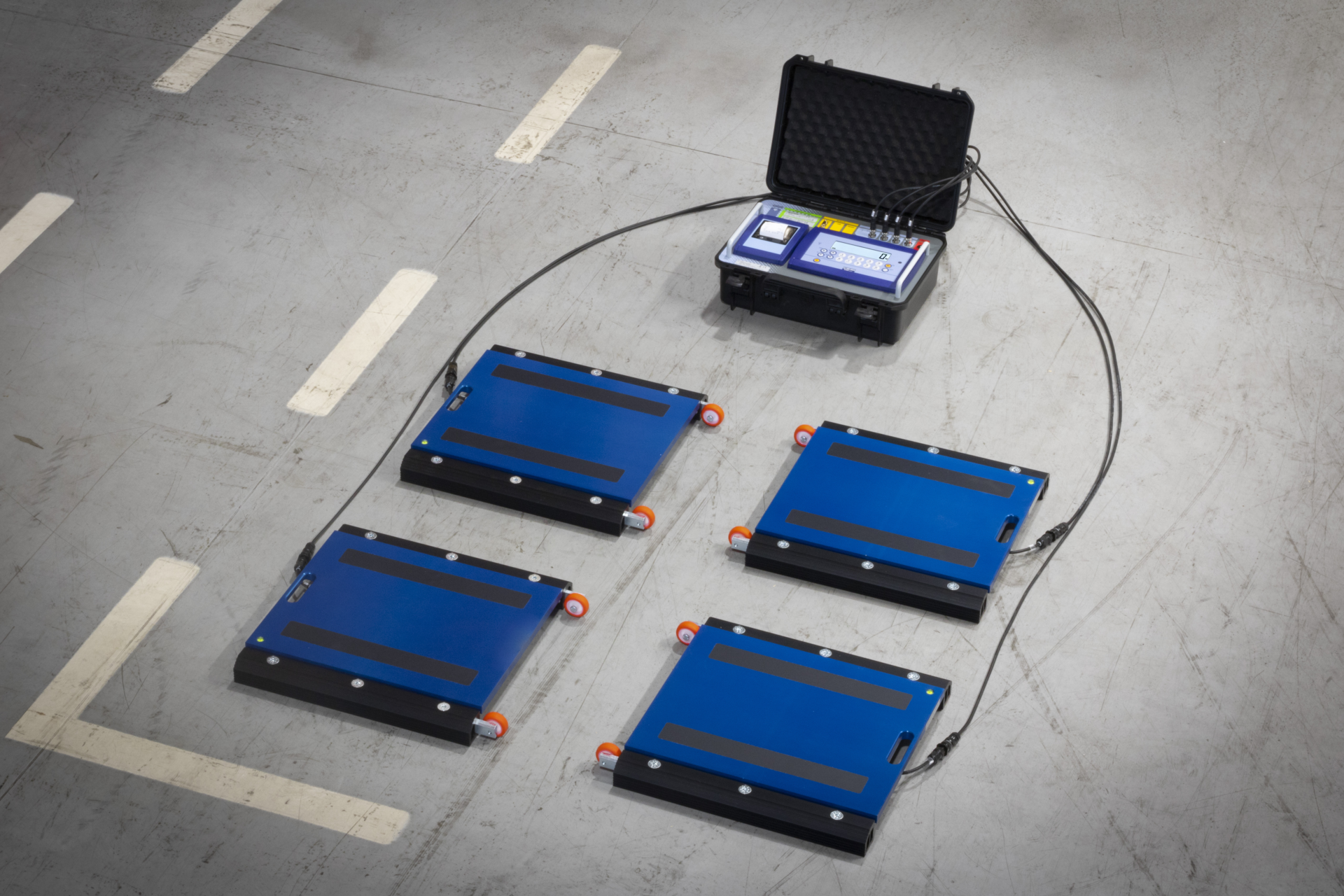

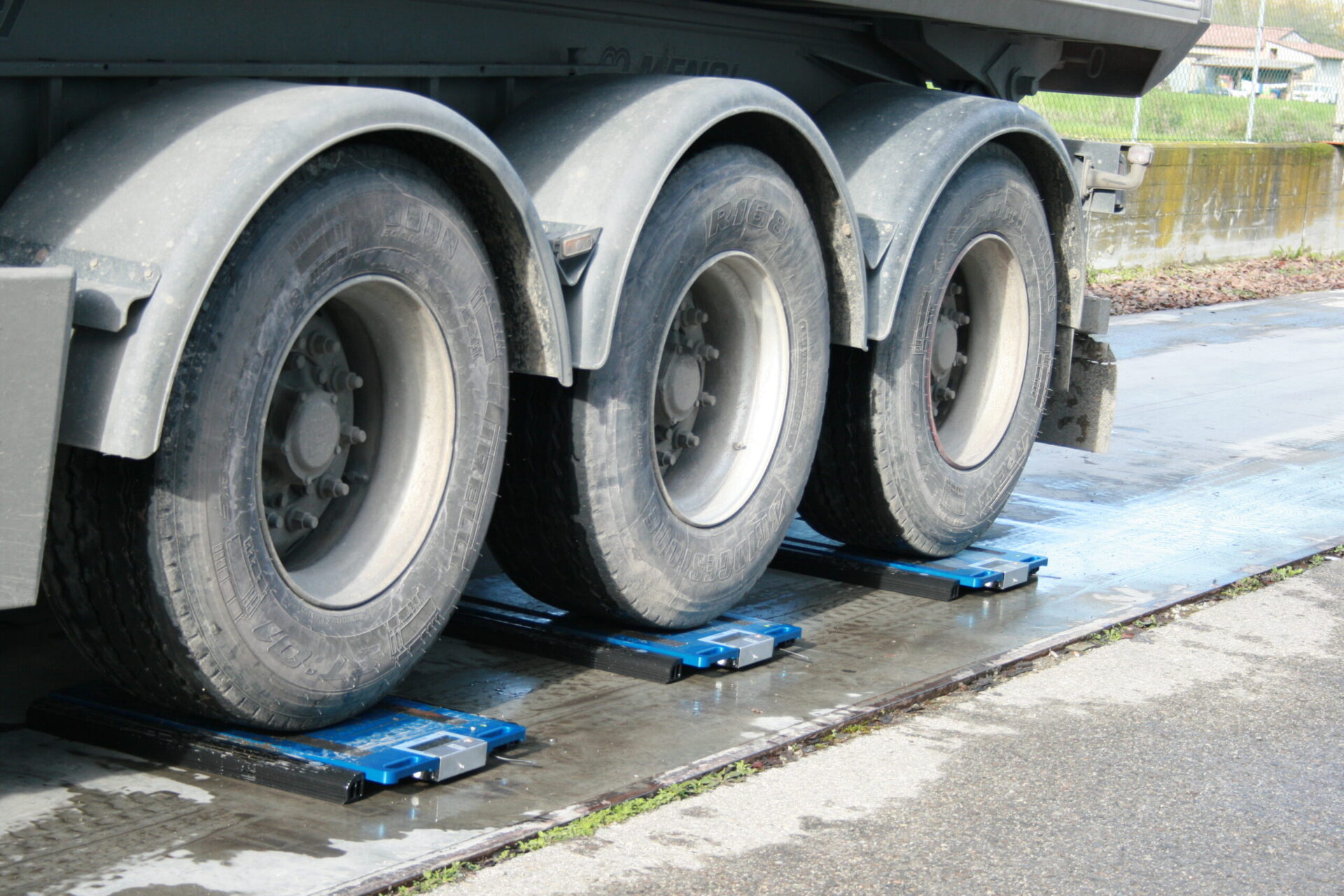

Our portable axle weigh pads are designed for use in situations where frequent weight checks of vehicles are required, their robust nature ensures they provide optimum weighing performance for many years.

Our pads feature a non slip base (important for high torque vehicles) and come complete with a Weight Indicator and Printer built into a compact carry case.A variety of options means we have all axle weighing requirements covered, we can provide solutions for weighing cars through to multi axle vehicles with high capacity weights.

A number of options allow for semi permanent installation into the ground doing away with requirement for cumbersome levelling modules.

Features

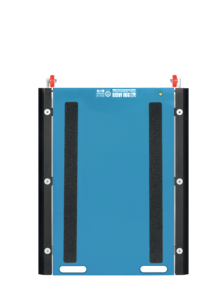

DAWWSE Weigh Pad

Use with levellers for multi axle vehicles and is fitted with wheels for easy transportation. Incorporates a non slip platform and an indicator with printer to give axle & gross weight.

Specifications
• Capacity – 10000kg x 5kg per pad
• Weighing Area – 700mm L x 450mm W x 58mm H
• Construction – High Strength light Aluminium Alloy
• Pad Weight – 26kg

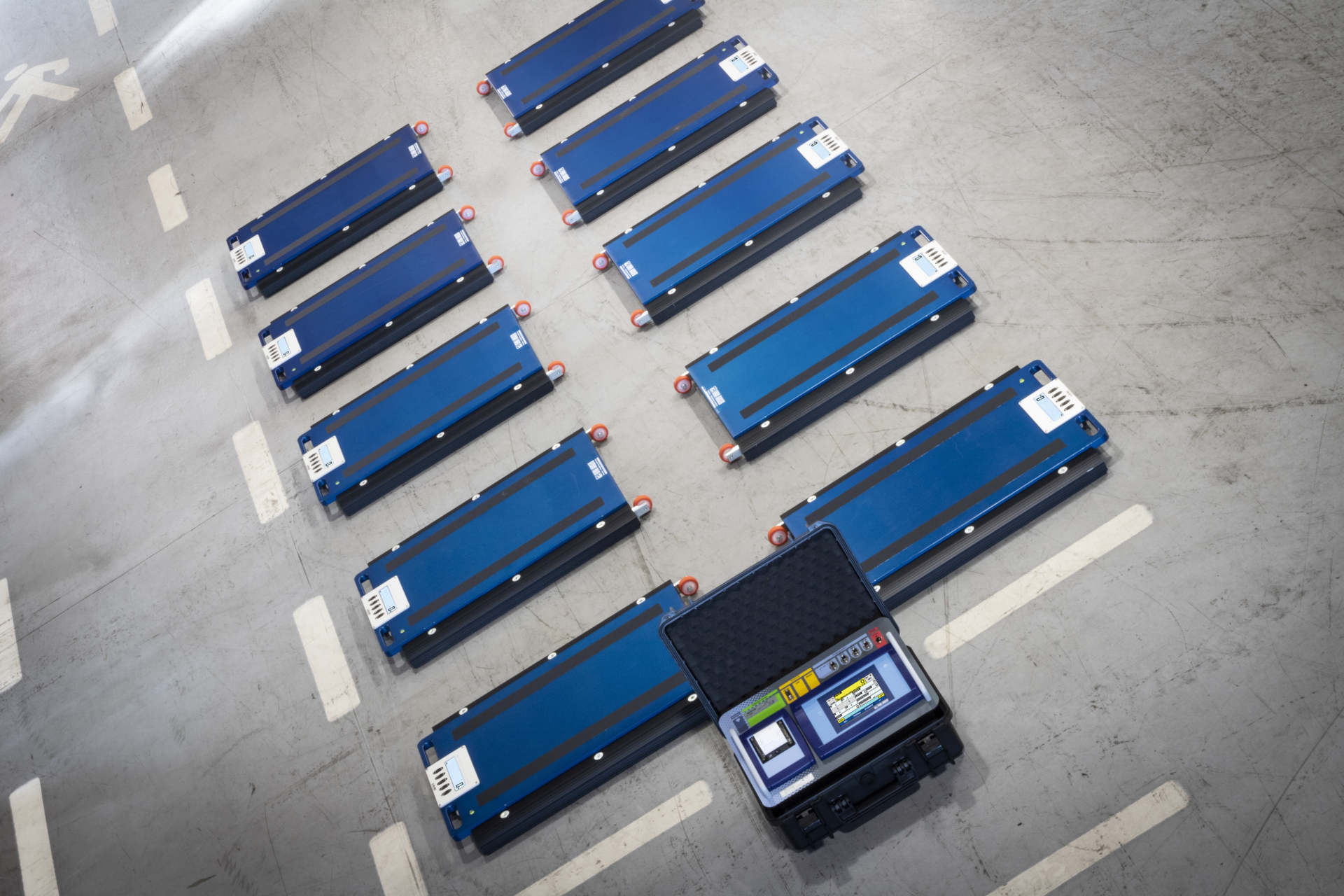

• Ideal for Weighing – Multi axle vehicles

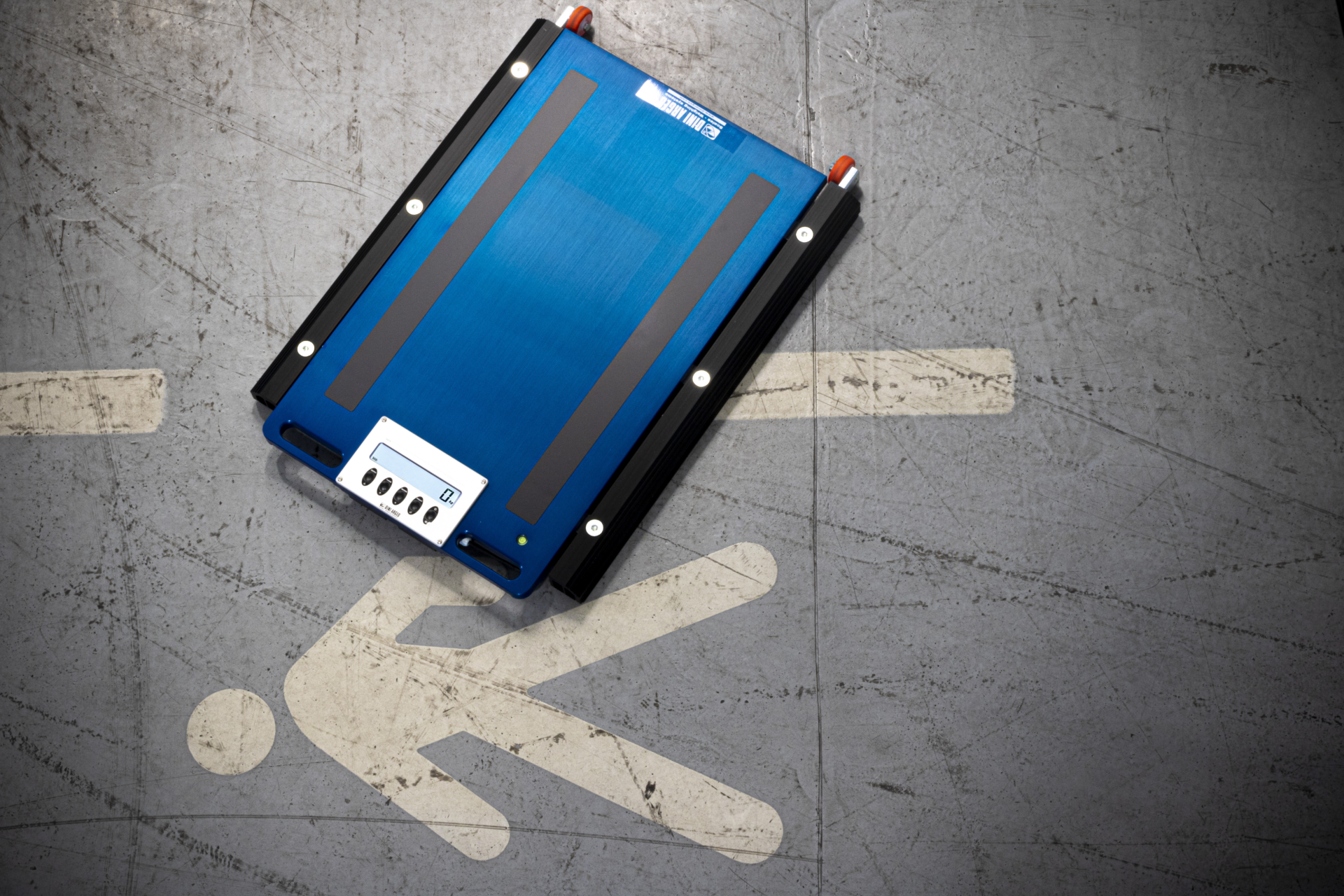

DAWWRF Wireless Weigh Pad

RF no cables, non-slip platform, indicator with printer to give axle & gross weight.

Specifications
• Capacity – 1500kg x 0.5kg per pad
• Weighing Area – 564mm L x 400mm W x 58mm H
• Construction – High Strength light Aluminium Alloy
• Pad Weight – 18kg
• Ideal for Weighing – Vans

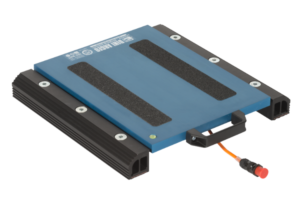

DAWWSB Cabled Weigh Pad

Non Slip Platform., indicator with printer to give axle & gross weight.

Specifications
• Capacity – 3000kg x 1kg per pad
• Weighing Area – 400mm L x 410mm W x 58mm H
• Construction – High Strength light Aluminium Alloy
• Pad Weight – 14.5kg
• Ideal for Weighing – Vans

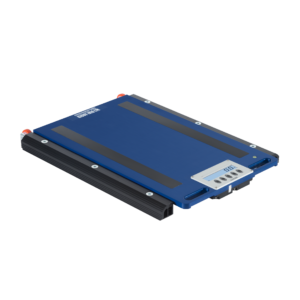

DAWWSERF Wireless

RF no cables, non slip platform, wheels for easy transportation, indicator with printer to give axle & gross weight.

Specifications
• Capacity – 6000kg x 2kg per pad
• Weighing Area – 750mm L x 450mm W x 58mm H
• Construction – High Strength light Aluminium Alloy
• Pad Weight – 28kg
• Ideal for Weighing – Large Vehicles

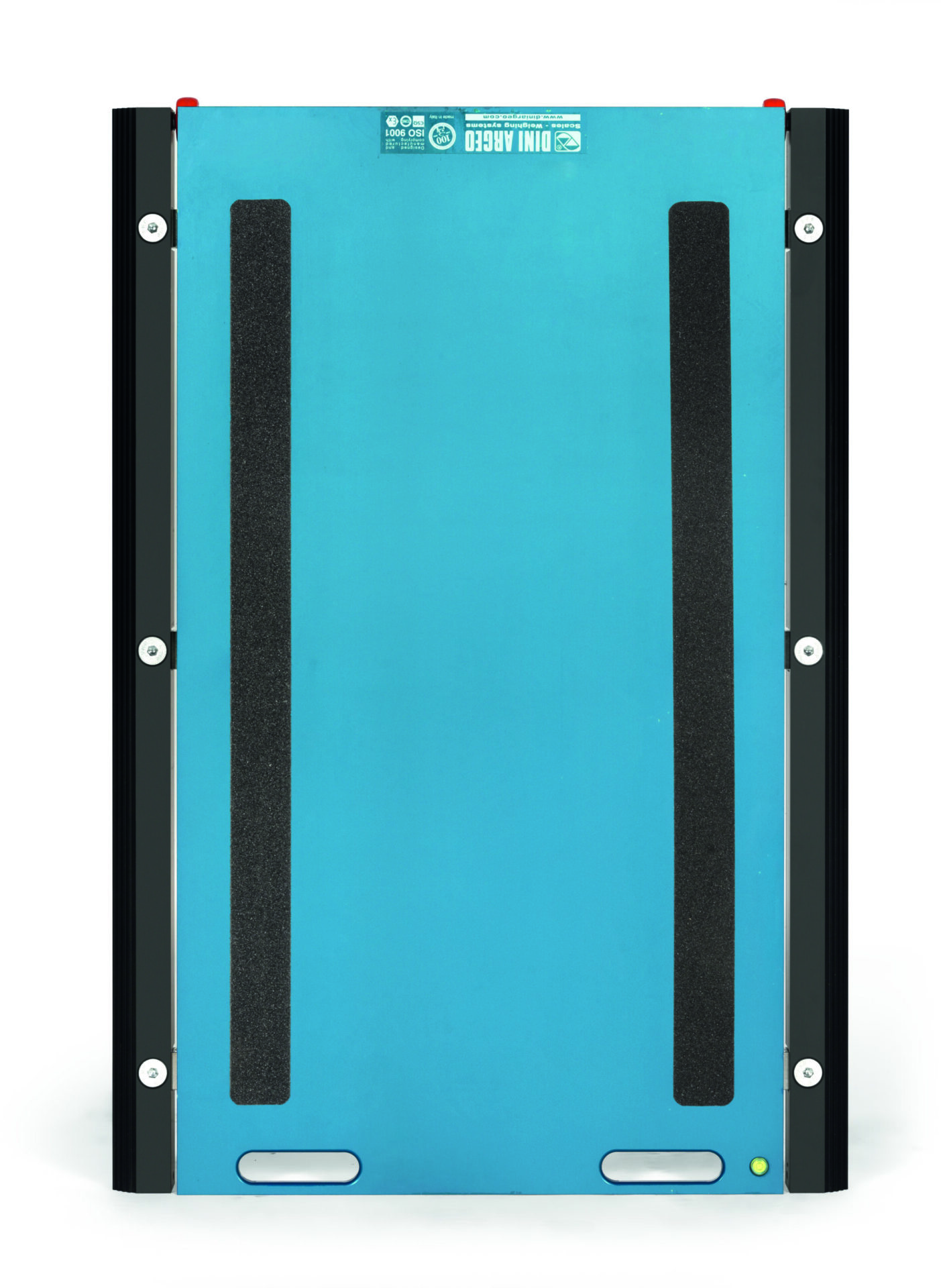

DAWWSDRF Wireless Weigh Pads

RF no cables, non slip platform, wheels for easy transportation, indicator with printer to give axle & gross weight.

Specifications
• Capacity – 10000kg x 5kg per pad
• Weighing Area – 950mm L x 500mm W x 58mm H
• Construction – High Strength light Aluminium Alloy
• Pad Weight – 46kg
• Ideal for Weighing – Large Vehicles

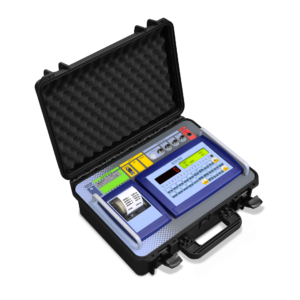

DA 3590ETKR

Touchscreen weighing terminal to weigh vehicles statically or dynamically.

Specifications
• Large intuitive touchscreen display
• Builtin printer with USB data storage option
• Rugged carry case for ease of transportation
• Battery powered for use in remote locations

Accessories

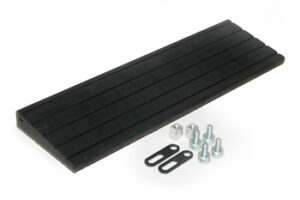

WWSR – Ramps for Weighpads

On/off ramp for WWSC, WWSE, WWSD & WWSF pads versions and the wireless models priced per ramp WWSDR ramp fits the WWSD and WWSF Models

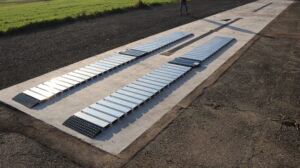

Levelling Kit for Weighpads

Levelling modules for the WWSE/WWSERF and WWSD/WWSDRF modelsPrices include four ramps”Easy Level” kit, for WWSE. Consisting of 12 levelling modules and 4 ramps.”Easy Level” kit, for WWSD. Consisting of 20 levelling modules and 4 ramps.

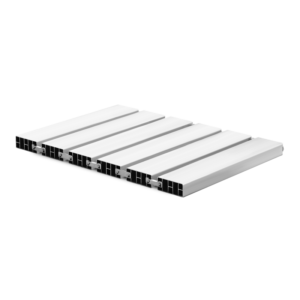

Levelling modules for Weighpads

Individual levelling modules for the WWSE/WWSERF and WWSD/WWSDRF modelsRamps sold seperately
