BrakeCheck GEO

DVSA-Approved Portable Service Brake & Hand Brake Tester With GPS Location Recording.

The BrakeCheck GEO, designed to carry out the service brake, hand brake and secondary brake test.

DVSA Approved

Re-chargeable

Portable

BrakeCheck Overview

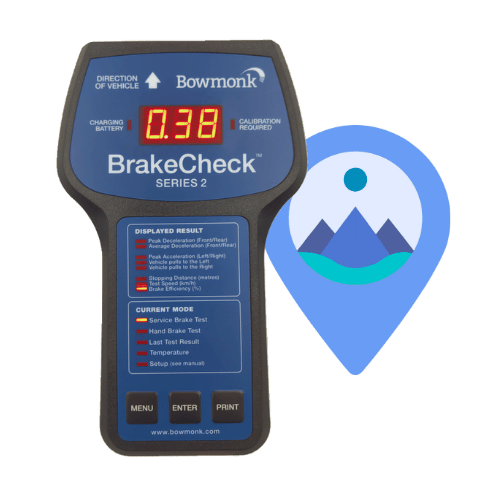

The Bowmonk BrakeCheck GEO is a portable brake decelerometer that measures brake efficiency while also recording the GPS location of each brake test.

Designed for fleet operators, compliance managers, and mobile inspectors, the GEO combines Bowmonk’s proven brake testing technology with built-in GPS tracking, providing additional traceability and accountability for every recorded test.

This BrakeCheck also supports compliance with the DVSA Guide to Maintaining Roadworthiness, where brake performance must be measured and assessed as part of a structured maintenance regime.

The GEO is not currently compatible with BCPRINT PC software for data transfer. If PC-based data download is required, consider the BrakeCheck Plus or standard BrakeCheck models.

Key Features & Functionality

Operation: Measures Service Brake and Hand Brake efficiency by recording deceleration from approximately 20 mph. Also records GPS location of test.
Diagnostics: Identifies braking imbalance (pulling left or right).
Usability: Self-contained and user-friendly. It features a self-compensating level indicator to ensure correct positioning.
Data: Results can be viewed on the LED screen or printed via a portable infra-red printer.
Memory: Has an independent 99 test memory for both the service and hand brake tests.
Power: Powered by a rechargeable lithium-ion battery with an auto power-down feature to save energy.

For more technical information for this BrakeCheck, download the datasheet here:

Also Available As A Kit!

The BrakeCheck GEO Kit is everything you need to carry out all necessary brake tests with maximum efficiency.

What’s Included:

BrakeCheck GEO Decelerometer
Portable Infrared Printer
Temperature Gun
Extra Roll of Printer Paper
Mains Lead For Printer
Mains Plug & USB Cable For BrakeCheck
Carry Case With Foam Insert

Find The BrakeCheck Suited To You

Find Your BrakeCheck

Answer a couple of questions to find the right model

What do you mainly test?

Do you need GPS location recorded with each test?

Recommended for you

Included features

View product details

BrakeCheck Features Comparison

Swipe to compare all models

Feature comparison across the BrakeCheck range
	All-rounderBrakeCheck Standard	BrakeCheck FLT	BrakeCheck Quarry	BrakeCheck GEO	BrakeCheck TT
Test memory	99tests	50tests	99tests	99tests	99tests
Service brake test	Included	Included	Included	Included	Included
Handbrake test	Included	Included	Not included	Included	Included
Secondary brake test	Included	Not included	Not included	Not included	Not included
Trailer test	Not included	Not included	Not included	Not included	Included
Incline test	Not included	Not included	Included	Not included	Not included
GPS recording	Not included	Not included	Not included	Included	Not included
Rechargeable	Included	Included	Included	Included	Included
Low operating speed	Not included	Included	Not included	Not included	Not included
	View product	View product	View product	View product	View product
